Air Driven Power Cutter for Sewer Laterals

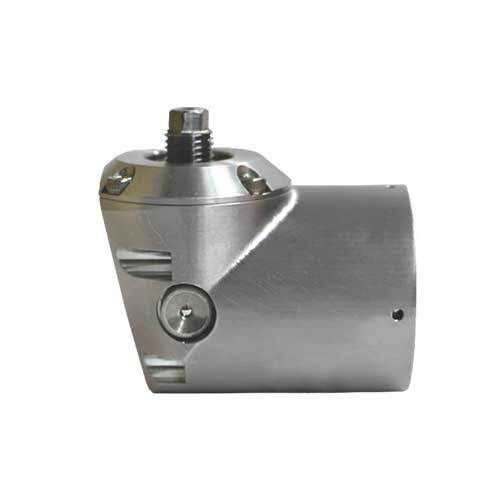

The 90DCX Angular Cutting Motor is used with our MICRO series or DRIVE cutting robots to reinstate service connections or prep sewer lines for rehabilitation.

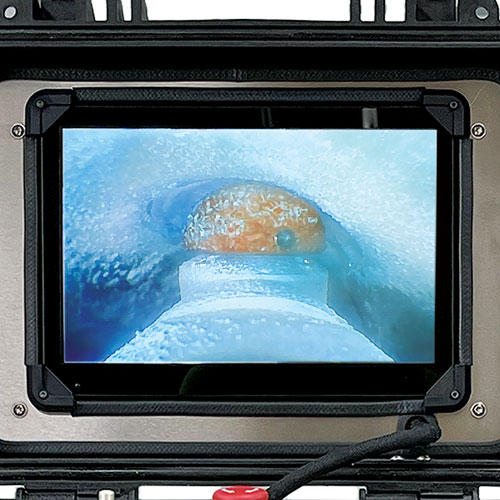

With this powerful tool, cutting bits are attached to the air motor offset at 90° for better positioning of the bit while giving you a better view of your work. Powered by the robot and the use of extension tools, the 90DCX can be used in CIPP lined pipes from 3” to 10”.
The 90DCX Angular Cutting Motor accepts only original IMS cutting bits for Micro or Drive robots and can cut through plastics, cured felt liners, concrete, stone, roots and more.
Components include a bevel gear and drive shaft special thread.
Specs:
- Line Size – 3" to 10" lines
- Range of application – For cleaning unpressurized lines
- Working temperature – 41° F to 104° F
- Required media supply –
- Supply air free of dirt (particles < 5 micrometres)
- Residual water separated
- Residual oil < 5mg/m3
- Supply pressure 145 PSI – min. flow rate 35 CFM
